ABB SMART BUILDINGS

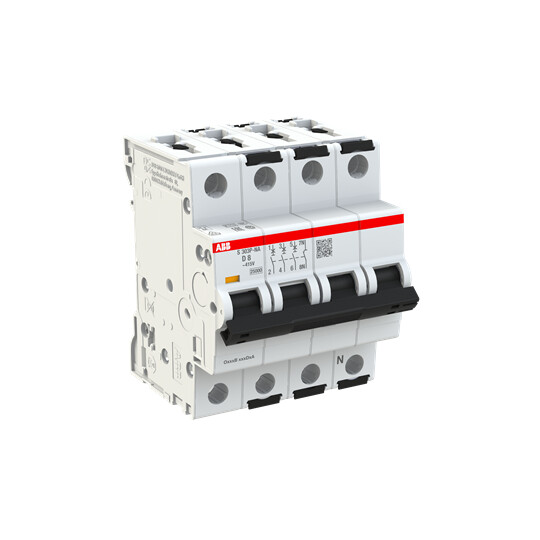

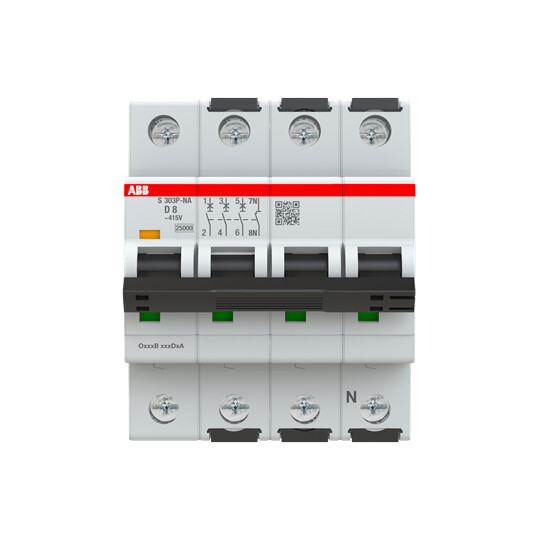

CIRCUIT BREAKER S300P 4-POLE 3+N D-CHAR. 8A

Name: CIRCUIT BREAKER S300P 4-POLE 3+N D-CHAR. 8A
Brand: ABB SMART BUILDINGS
SKU: DCU216

Product code

3216391

No product description available.

Product details

Built-in depth69 mm

Release characteristicD

Number of poles (total)4

Number of protected poles3

Rated current8 A

Rated voltage415 V

Rated insulation voltage Ui500 V

Rated impulse withstand voltage Uimp6 kV

Voltage typeAC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA

Frequency50 ... 60 Hz

Power loss5.6 W

Flush-mounted installationfalse

SAPDCU216

PLC3216391

STK3216391

GTIN/EAN4016779077385

Manufacturer part number2CDS383103R0081

Vendor material number3216391

Package measurements (L x W x H)88 x 70 x 69 mm

Package volume0.425 l

Package weight0.496 kg

Base uniteach

Package units1 / 24

Package contents–

UNSPSC39121603

BrandABB SMART BUILDINGS

VendorABB OY PJKOJEET, UPS JA SOLAR
