ABB SMART BUILDINGS

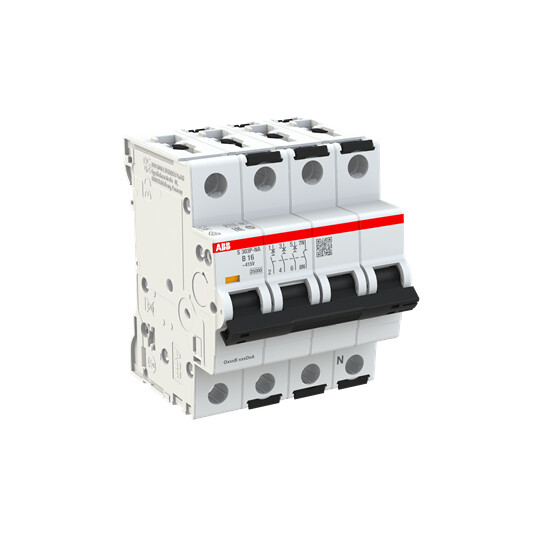

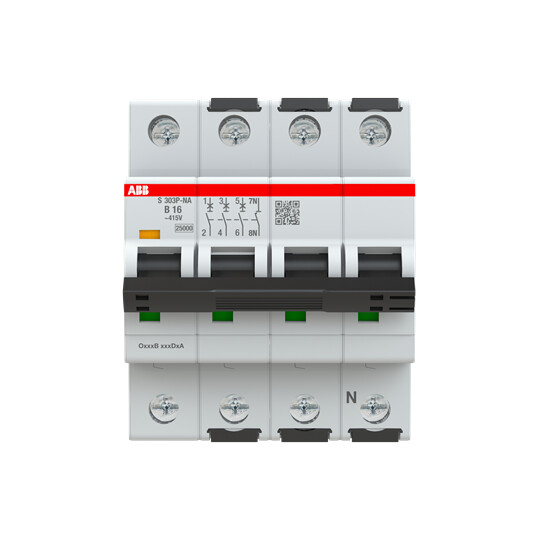

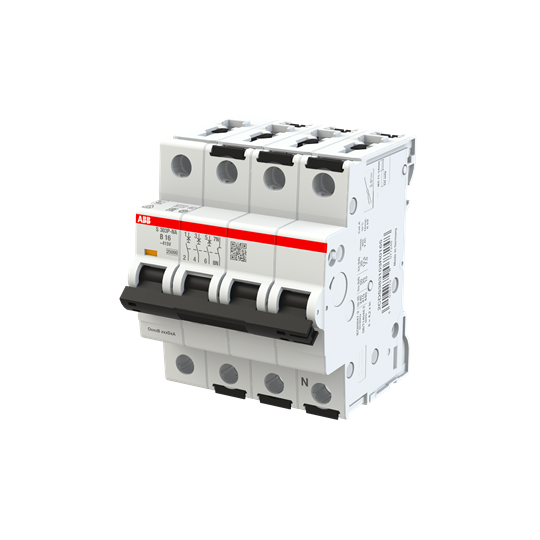

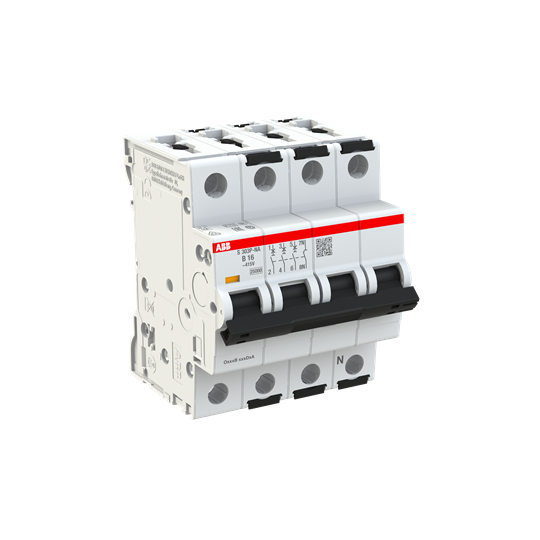

CIRCUIT BREAKER S300P 4-POLE 3+N B-CHAR. 16A
Product code
3216007
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicB
Number of poles (total)4
Number of protected poles3
Rated current16 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50 ... 60 Hz
Power loss6.8 W
Flush-mounted installationfalse
Concurrently switching neutral conductortrue
Product codes
SAPDCU231
PLC3216007
STK3216007
GTIN/EAN4016779077248
Manufacturer part number2CDS383103R0165
Vendor material number3216007
Basic information
Package measurements (L x W x H)88 x 70 x 69 mm
Package volume0.425 l
Package weight0.496 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
