ABB SMART BUILDINGS

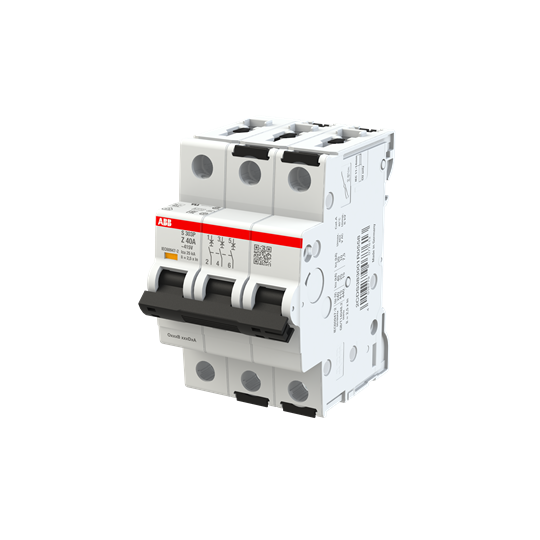

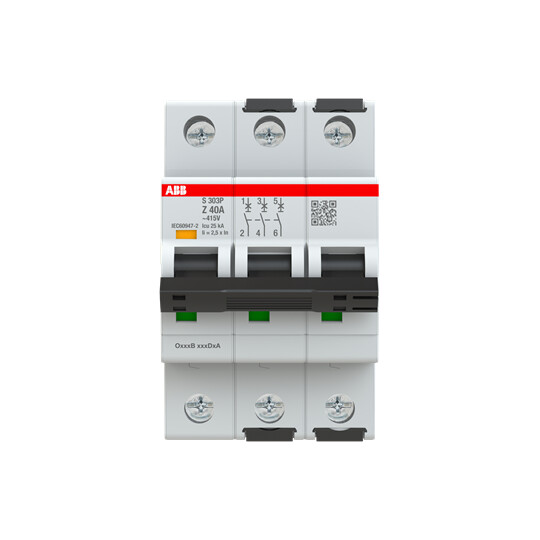

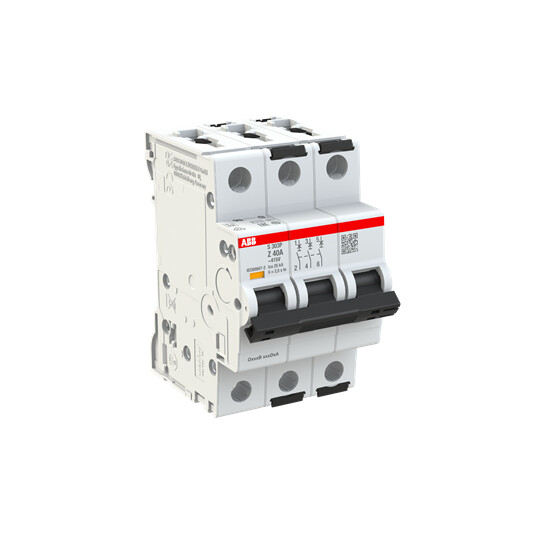

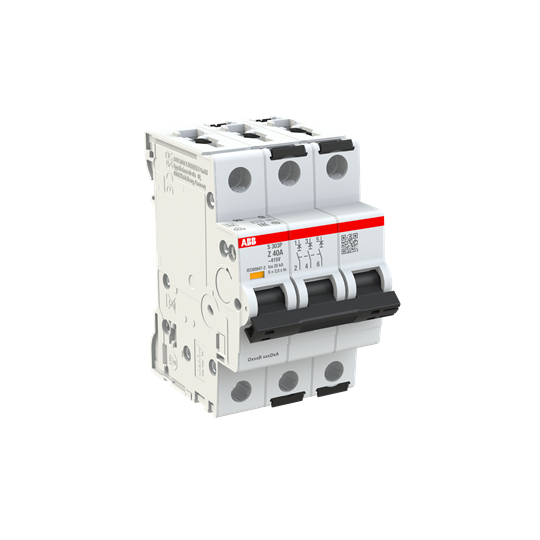

CIRCUIT BREAKER S300P 3-POLE Z-CHAR. 40A

Name: CIRCUIT BREAKER S300P 3-POLE Z-CHAR. 40A
Brand: ABB SMART BUILDINGS
SKU: DCU193

Product code

3214052

No product description available.

Product details

Built-in depth69 mm

Release characteristicZ

Number of poles (total)3

Number of protected poles3

Rated current40 A

Rated voltage415 V

Rated insulation voltage Ui500 V

Rated impulse withstand voltage Uimp6 kV

Voltage typeAC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V40 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA

Frequency50 ... 60 Hz

Power loss14.7 W

Flush-mounted installationfalse

SAPDCU193

PLC3214052

STK3214052

GTIN/EAN4016779077613

Manufacturer part number2CDS383001R0558

Vendor material number3214052

Package measurements (L x W x H)88 x 52.5 x 69 mm

Package volume0.319 l

Package weight0.372 kg

Base uniteach

Package units1 / 36

Package contents–

UNSPSC39121603

BrandABB SMART BUILDINGS

VendorABB OY PJKOJEET, UPS JA SOLAR
