ABB SMART BUILDINGS

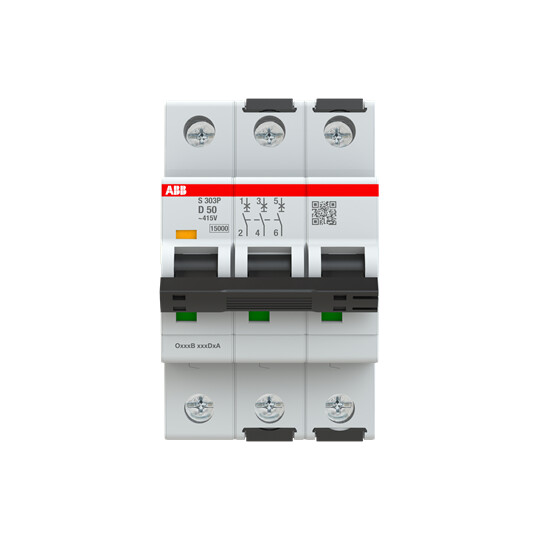

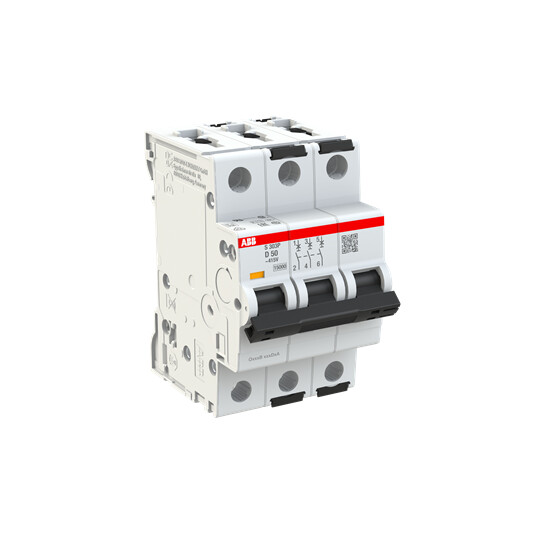

CIRCUIT BREAKER S300P 3-POLE D-CHAR. 50A
Product code
3216189
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicD
Number of poles (total)3
Number of protected poles3
Rated current50 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50 ... 60 Hz
Power loss10.2 W
Flush-mounted installationfalse
Concurrently switching neutral conductorfalse
Product codes
SAPDCU185
PLC3216189
STK3216189
GTIN/EAN4016779077699
Manufacturer part number2CDS383001R0501
Vendor material number3216189
Basic information
Package measurements (L x W x H)88 x 52.5 x 69 mm
Package volume0.319 l
Package weight0.372 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
