ABB SMART BUILDINGS

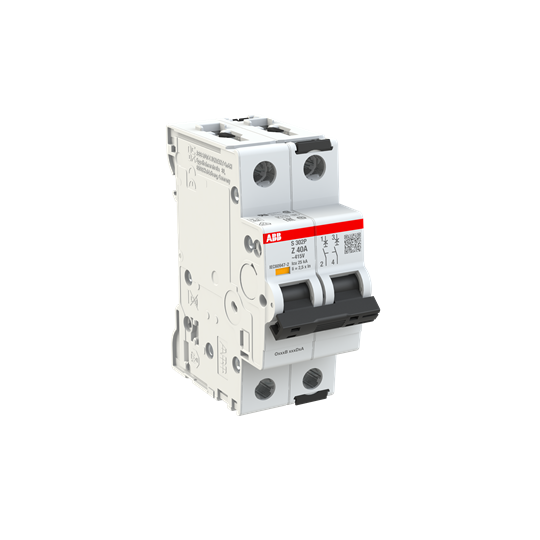

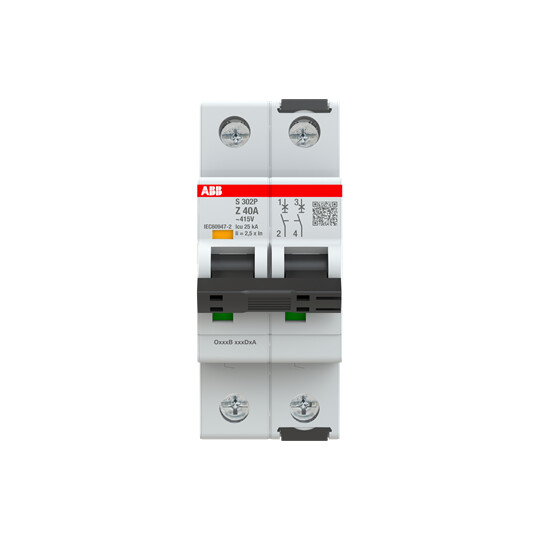

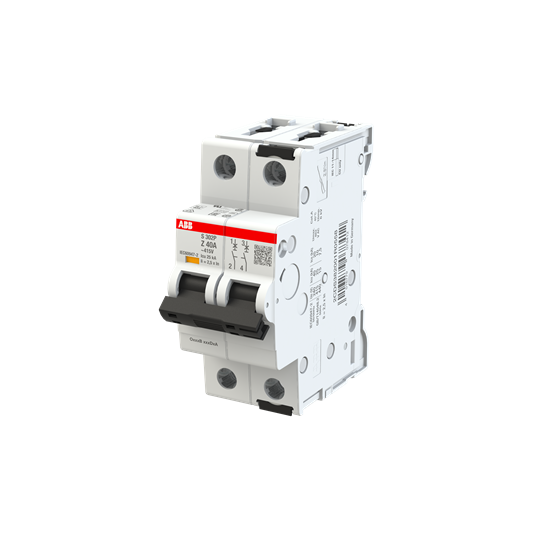

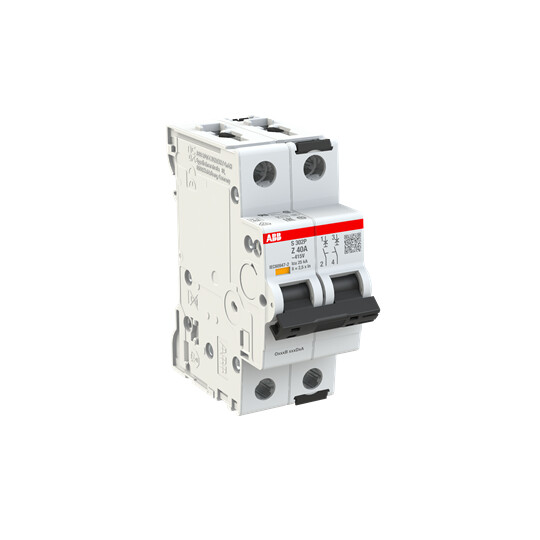

CIRCUIT BREAKER S300P 2-POLE Z-CHAR. 40A

Name: CIRCUIT BREAKER S300P 2-POLE Z-CHAR. 40A
Brand: ABB SMART BUILDINGS
SKU: DCU108

Product code

3214037

No product description available.

Product details

Built-in depth69 mm

Release characteristicZ

Number of poles (total)2

Number of protected poles2

Rated current40 A

Rated voltage415 V

Rated insulation voltage Ui500 V

Rated impulse withstand voltage Uimp6 kV

Voltage typeAC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V40 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA

Frequency50 ... 60 Hz

Power loss9.8 W

Flush-mounted installationfalse

SAPDCU108

PLC3214037

STK3214037

GTIN/EAN4016779078412

Manufacturer part number2CDS382001R0558

Vendor material number3214037

Package measurements (L x W x H)88 x 35 x 69 mm

Package volume0.213 l

Package weight0.248 kg

Base uniteach

Package units1 / 60

Package contents–

UNSPSC39121603

BrandABB SMART BUILDINGS

VendorABB OY PJKOJEET, UPS JA SOLAR
