ABB SMART BUILDINGS

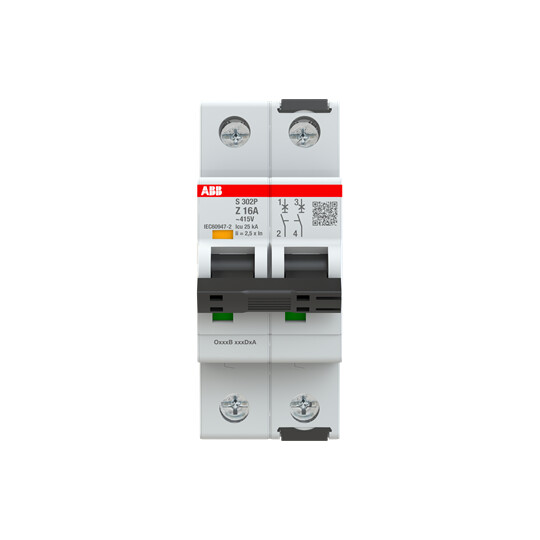

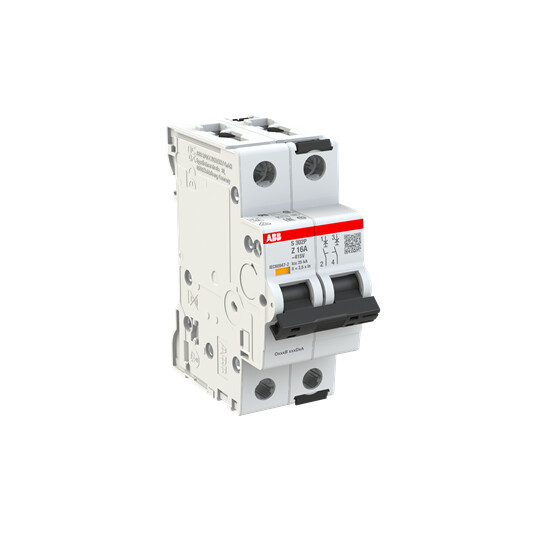

CIRCUIT BREAKER S300P 2-POLE Z-CHAR. 16A
Product code
3214033
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicZ
Number of poles (total)2
Number of protected poles2
Rated current16 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50 ... 60 Hz
Power loss4 W
Flush-mounted installationfalse
Concurrently switching neutral conductorfalse
Product codes
SAPDCU097
PLC3214033
STK3214033
GTIN/EAN4016779078528
Manufacturer part number2CDS382001R0468
Vendor material number3214033
Basic information
Package measurements (L x W x H)88 x 35 x 69 mm
Package volume0.213 l
Package weight0.248 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
