ABB SMART BUILDINGS

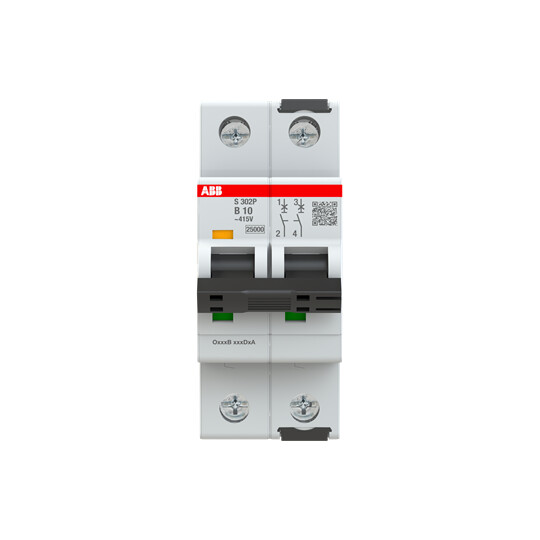

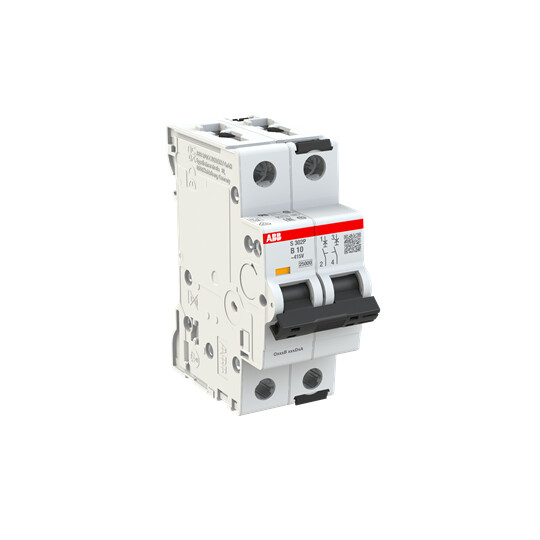

CIRCUIT BREAKER S300P 2-POLE B-CHAR. 10A
Product code
3212163
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicB
Number of poles (total)2
Number of protected poles2
Rated current10 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50 ... 60 Hz
Power loss2.8 W
Flush-mounted installationfalse
Concurrently switching neutral conductorfalse
Product codes
SAPDCU056
PLC3212163
STK3212163
GTIN/EAN4016779078931
Manufacturer part number2CDS382001R0105
Vendor material number3212163
Basic information
Package measurements (L x W x H)88 x 35 x 69 mm
Package volume0.213 l
Package weight0.248 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
