ABB SMART BUILDINGS

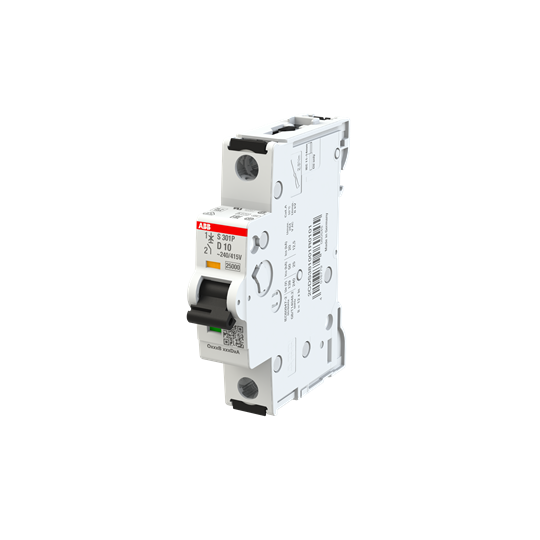

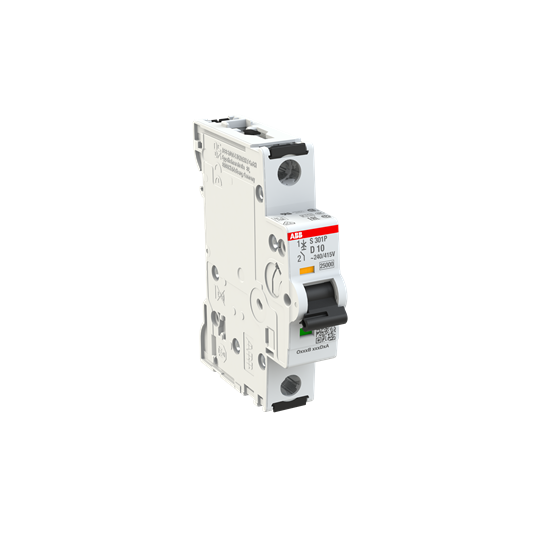

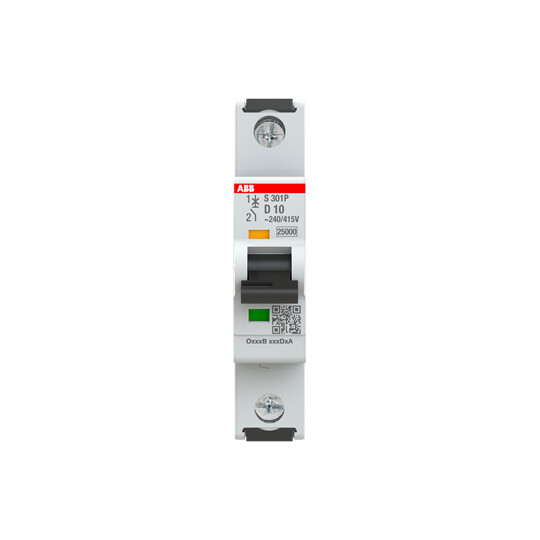

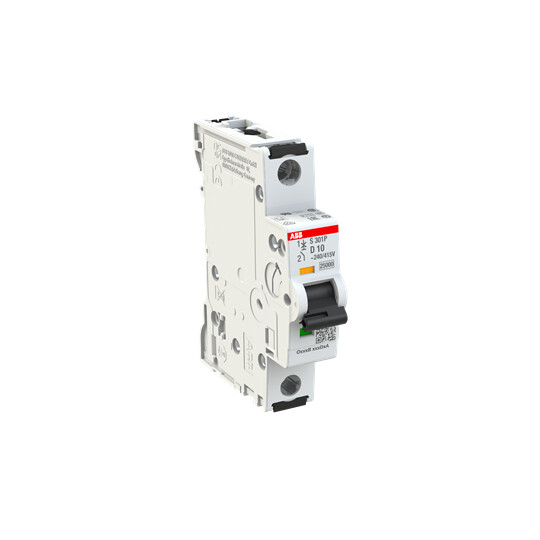

CIRCUIT BREAKER S300P 1-POLE D-CHAR. 10A
Product code
3216039
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicD
Number of poles (total)1
Number of protected poles1
Rated current10 A
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Frequency50 ... 60 Hz
Power loss1.2 W
Flush-mounted installationfalse
Concurrently switching neutral conductorfalse
Over voltage category4
Product codes
SAPDCT892
PLC3216039
STK3216039
GTIN/EAN4016779080545
Manufacturer part number2CDS381001R0101
Vendor material number3216039
Basic information
Package measurements (L x W x H)88 x 17.5 x 67.6 mm
Package volume0.104 l
Package weight0.124 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC39121603
BrandABB SMART BUILDINGS
VendorABB OY PJKOJEET, UPS JA SOLAR
