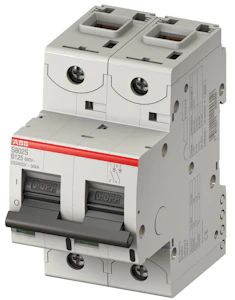

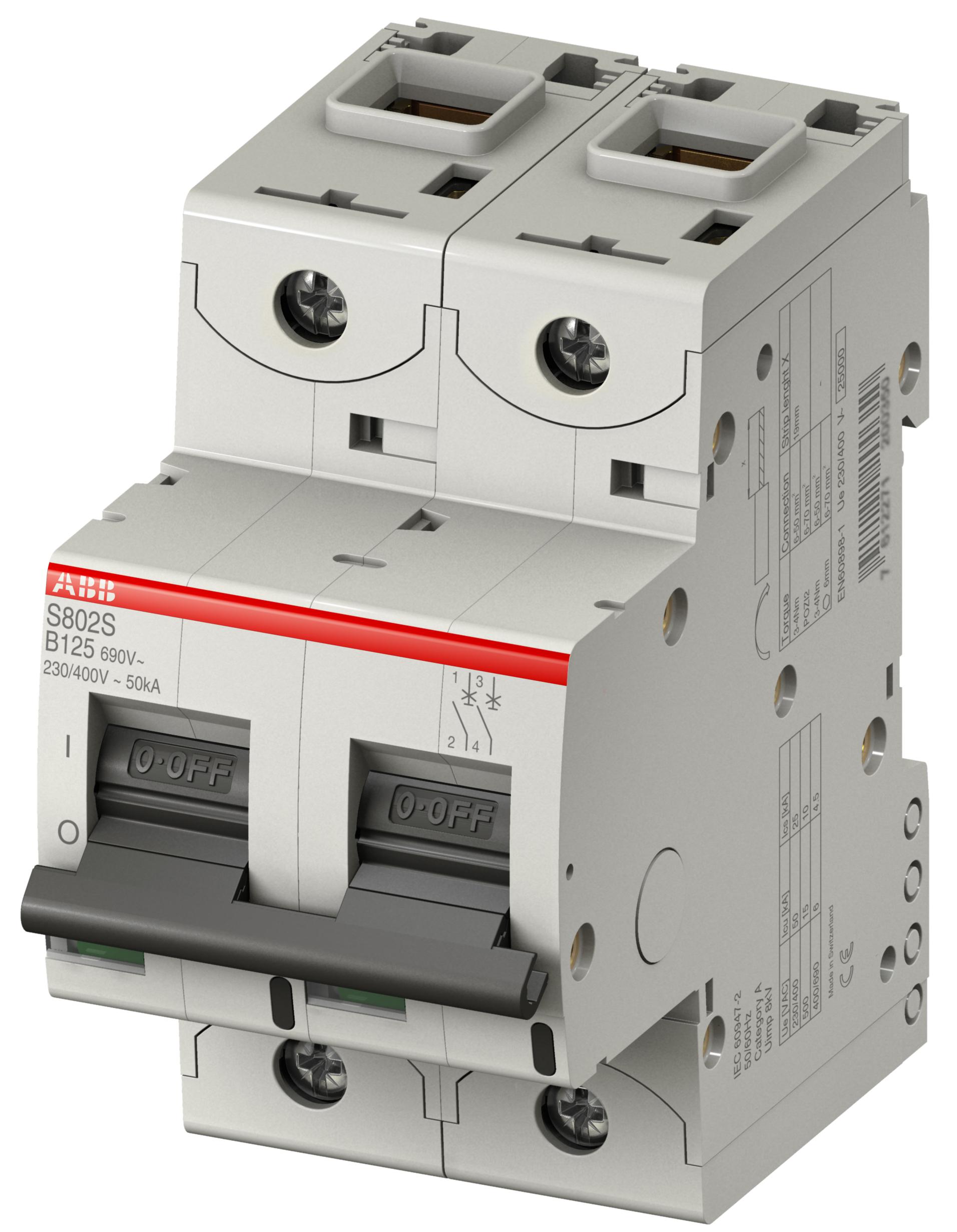

MINIATURE CIRCUIT BREAKER S800 2-POLES K-CHAR. 16A
Product code
3212318
No product description available.
Product details
Technical specifications
Built-in depth82.5 mm
Release characteristicK
Number of poles (total)2
Number of protected poles2
Rated current16 A
Rated voltage400 V
Rated insulation voltage Ui690 V
Rated impulse withstand voltage Uimp8 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6 kA
Frequency50 ... 60 Hz
Power loss7 W
Product codes
SAPCJC325
PLC3212318
STK3212318
GTIN/EAN7612271201586
Manufacturer part numberS802S-K16
Vendor material number3212318
Basic information
Package measurements (L x W x H)82.5 x 54 x 95 mm
Package volume0.423 l
Package weight0.49 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121603
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
