LOAD BREAK SWITCH LEVER OT2000E12P
Product code
3641583

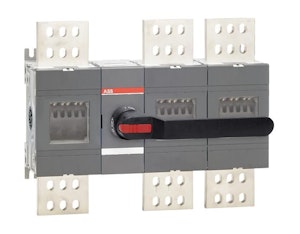

OT2000E12P switch-disconnector
The product cannot be delivered from web store
Including terminal bolt kit, a black ON-OFF plastic handle OHB200J12P and shaft OXP12x280 as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft is adjustable for a range of installation depths.
Product details
Technical specifications
Version as main switchtrue
Version as maintenance-/service switchtrue
Version as safety switchfalse
Version as emergency stop installationfalse
Version as reversing switchfalse
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage1000 ... 1000 V
Rated permanent current Iu2000 A
Rated permanent current at AC-21, 400 V2000 A
Rated short-time withstand current lcw55 kA
Rated operation power at AC-23, 400 V# kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Product codes
SAPAEX902
PLC3641583
STK3641583
GTIN/EAN6417019414409
Manufacturer part numberOT2000E12P
Vendor material number3641583
Basic information
Package measurements (L x W x H)780 x 500 x 580 mm
Package volume226.2 l
Package weight42.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
The country of origin stated by the supplierFinland
