EARTHING STRAP PP36 LENGHT 1m
Product code
5026097
Earthing strap

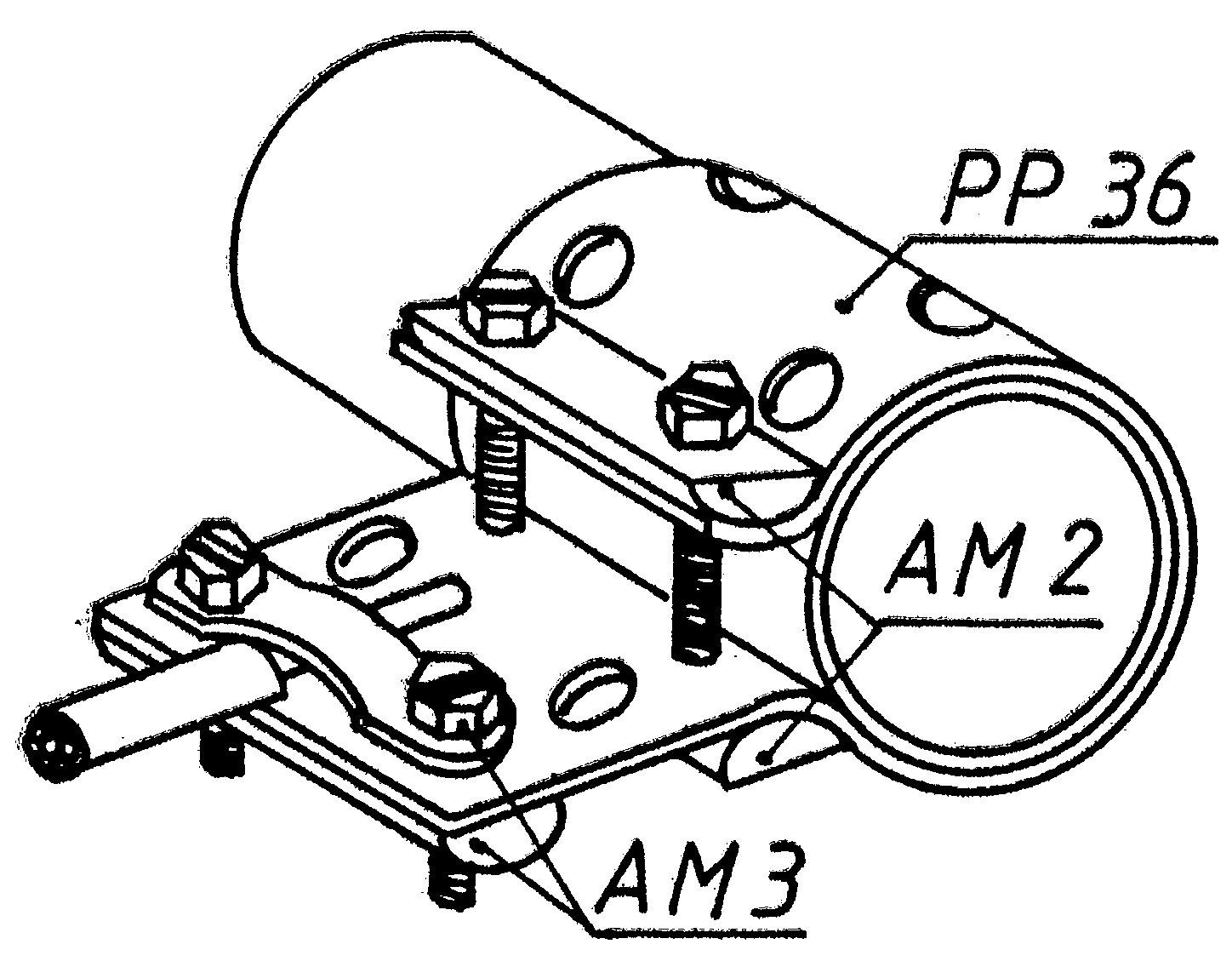

The earthing conductors, max. 35 mm² Cu, are connected to the various pipework using an earthing strap PP36 with a strap clamp AM2 and terminal AM3. In case a 50 mm² or 70 mm² Cu-conductor is connected to the earthing block, both ends of the earthing strap must be pressed together with the terminal to get sufficient conductivity. The terminal and the strap clamp are made of zinc-plated and yellow passivated steel. The 6 mm screws are tightened with a 10 mm wrench. The earthing strap is made of tinned annealed copper 1,5 mm thick.
Product details
Technical specifications
Clamping/chucking range13 ... 164 mm
Min. clamping range inchOther
Max. clamping range inchOther
MaterialCopper
Surface protectionOther
Cross section of the connecting conductors1 ... 35 mm²
Product codes
SAPAAK174
PLC5026097
STK5026097
GTIN/EAN6410050260974
Manufacturer part numberPP36
Vendor material number5026097
Basic information
Package measurements (L x W x H)1000 x 35 x 2 mm
Package volume0.07 l
Package weight0.415 kg
Base uniteach
Package units1 / 20 / 100
Package contents–
UNSPSC26121538
BrandABB
VendorABB OY ASENNUSTUOTTEET
The country of origin stated by the supplierFinland
