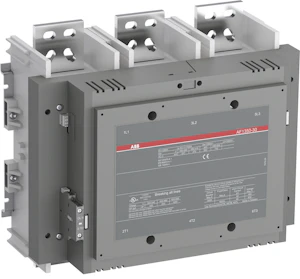

CONTACTOR AF 1350-30-11-70
Product code
3709257
AF1350-30-11 100..250VAC/DC
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, AC/DC
Product details
Technical specifications
Rated control supply voltage AC 50 Hz100 ... 250 V
Rated control supply voltage AC 60 Hz100 ... 250 V
Rated control supply voltage DC100 ... 250 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitRail connection
Operating voltage AC 50 Hz1000 ... 1000 V
Operating voltage AC 60 Hz1000 ... 1000 V
Rated operation current Ie at AC-1, 400 V1350 A
Rated operation current Ie at AC-3, 400 V860 A
Rated operation power at AC-3, 400 V475 kW
Rated operation power NEMA596.56 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Product codes
SAPACG718
PLC3709257
STK3709257
GTIN/EAN7320500250143
Manufacturer part numberAF1350-30-11-70
Vendor material number3709257
Basic information
Package measurements (L x W x H)68 x 85 x 35 mm
Package volume0.202 l
Package weight0.35 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
