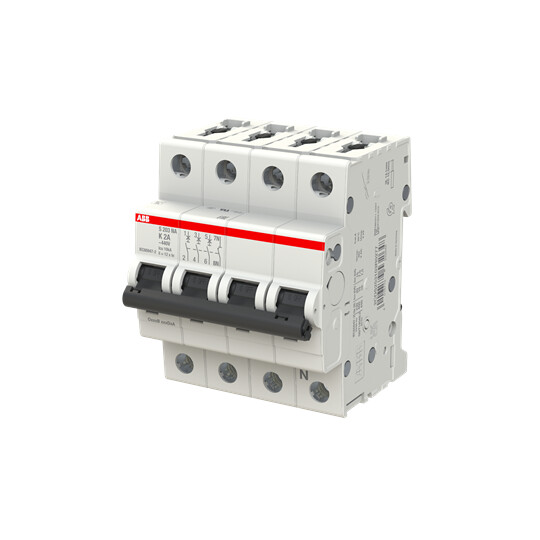

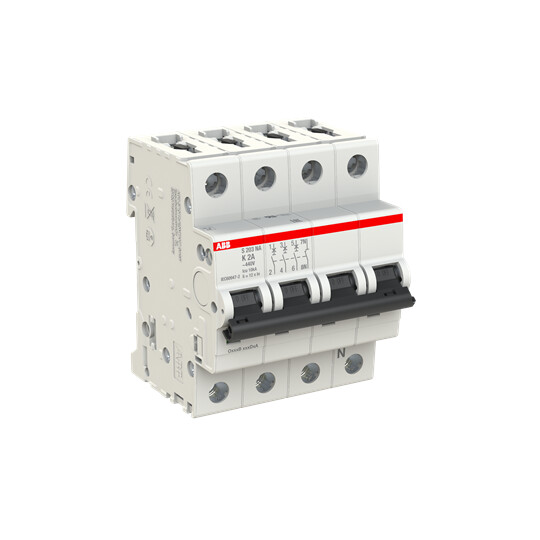

CIRCUIT BREAKER S203-K2NA
Product code
3210927
No product description available.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicK
Number of poles (total)4
Number of protected poles3
Rated current2 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 ... 60 Hz
Power loss6.6 W
Product codes
SAPACU017
PLC3210927
STK3210927
GTIN/EAN4016779532648
Manufacturer part numberS203-K2NA
Vendor material number3210927
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.5 kg
Base uniteach
Package units1 / 2
Package contents–
UNSPSC39121603
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
