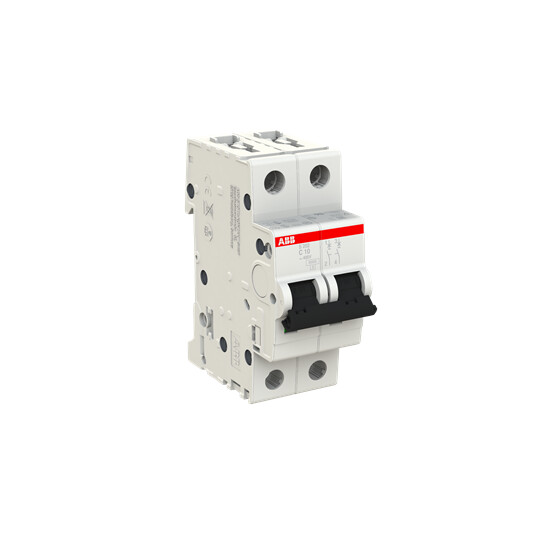

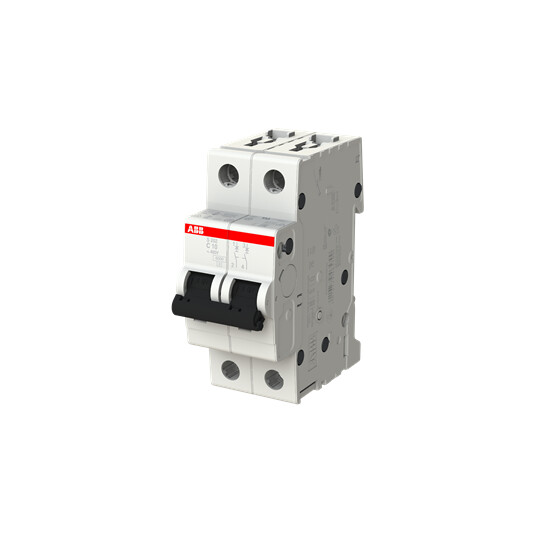

CIRCUIT BREAKER S202-C10
Product code
3210510
DVÄRGBRYTARE S202 C10
S202-C 10 Mini Circuit Breaker C-Char.,6kA,10A,2P
Product details
Technical specifications
Built-in depth69 mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current10 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 ... 60 Hz
Power loss4.2 W
Product codes
SAPACT932
PLC3210510
STK3210510
GTIN/EAN4016779465700
Manufacturer part numberS202-C10
Vendor material number3210510
Basic information
Package measurements (L x W x H)90 x 35 x 75 mm
Package volume0.236 l
Package weight0.22 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121603
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
