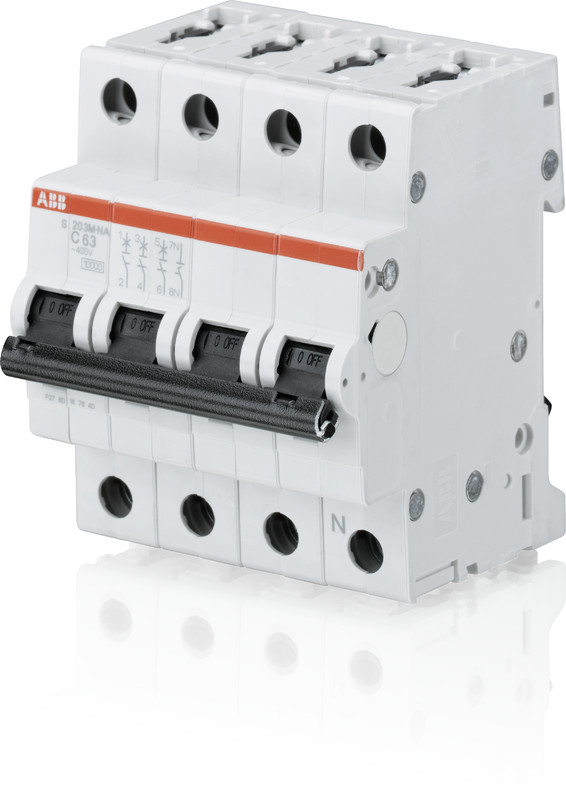

CIRCUIT BREAKER S200M 4-POLE 3+N K-CHAR. 16A

Product code
3210612
No product description available.

Product details

Technical specifications

Built-in depth69 mm
Release characteristicK
Number of poles (total)4
Number of protected poles3
Rated current16 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 ... 60 Hz
Power loss8 W

Product codes

SAPDCT637
PLC3210612
STK3210612
GTIN/EAN4016779659543
Manufacturer part number2CDS273103R0467
Vendor material number3210612

Basic information

Package measurements (L x W x H)88 x 70 x 69 mm
Package volume0.425 l
Package weight0.5 kg
Base uniteach
Package units1 / 24 / 764
Package contents
UNSPSC39121603
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
