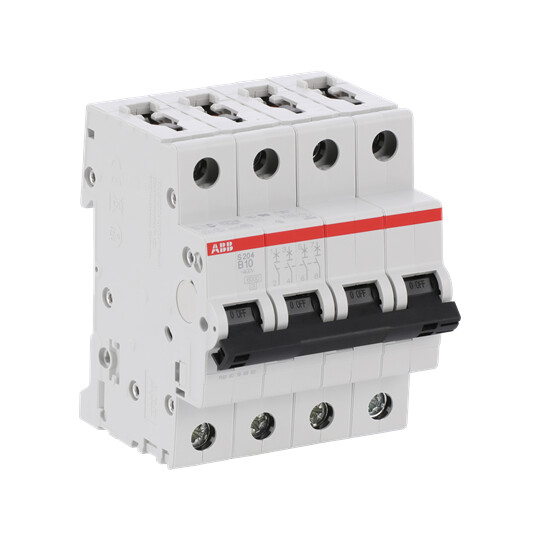

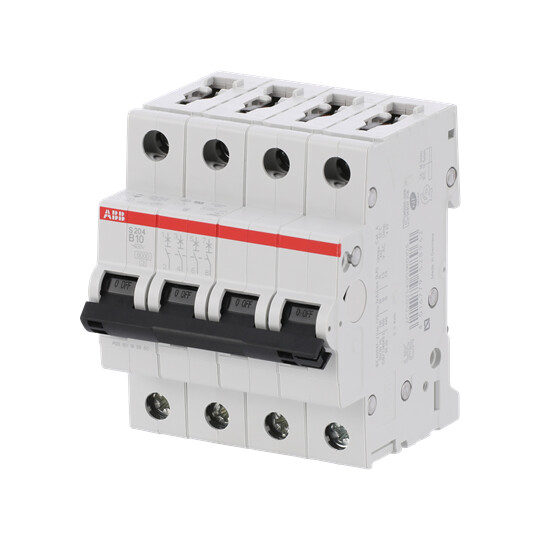

ABB S204-B10

Product code
3211024
No product description available.

Product details

Technical specifications

Built-in depth69 mm
Release characteristicB
Number of poles (total)4
Number of protected poles4
Rated current10 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 ... 60 Hz
Power loss8.4 W

Product codes

SAPCFP173
PLC3211024
STK3211024
GTIN/EAN4016779528962
Manufacturer part numberS204-B10
Vendor material number3211024

Basic information

Package measurements (L x W x H)69 x 70 x 85 mm
Package volume0.411 l
Package weight0.5 kg
Base uniteach
Package units1 / 1
Package contents
UNSPSC39121603
BrandABB
VendorABB OY PJKOJEET, UPS JA SOLAR
